Description
USR-M100-ETH Din Rail IO Module with Ethernet and Serial Port
Power supply :
Input Voltage : 9 – 36 VDC reverse polarity protection, surge protection
Power Consumption Idle: < 2.4W, Max: < 4.8W
Baud rates : 600~230400 bps
Data bits: 7,8S
top bits: 1,2
Parity: None,Even,Odd,Mark,Space
Flow: None,XONXOFF
DI : 2 x Digital non-isolated input (0 – 2 V detected as logic low, 9 – 36 V detected as logic high)
DO : 2 x Relays
DC contacts rating @R(at resistive load)10A / 28V DC
AC contacts rating @R(at resistive load)10A / 277V AC,NO
AC contacts rating @R(at resistive load)5A / 250V AC, NC
AI : 2 x Analog input 4-20mA
Physical interface Dimensions: (W x H xD) 79.6 x 58 x 110 (mm)
Mounting:
DIN rail
Hardware protection :
ESD: IEC61000-4-2,Level 3,class B,contact 6KV,air 8KV
Surge: IEC61000-4-5,Level 3,class B
EFT: IEC61000-4-4,Level 3,class B
Network :
ETHERNET: 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX Software
Software :
Network protocols: ICMP,IPv4,IPv4,ARP,ICMP,TCP,UDP,DHCP,DNS,HTTPS,MQTT,SNMP,Telnet,NTP,SSL v3
IP: DHCP/StaticIP

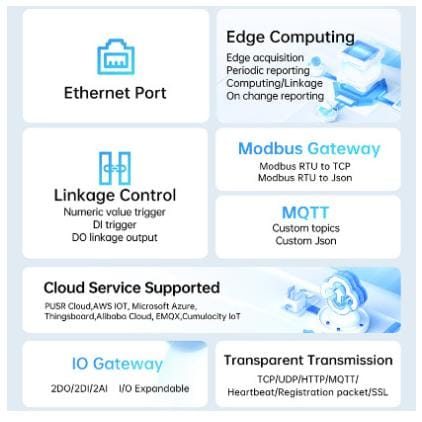

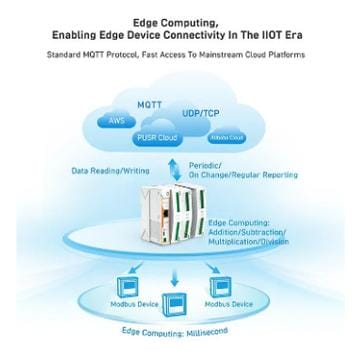

Websocket: Supported, MQTT Supported, standard MQTT protocol, 16 subscription topics and 16 publish topics

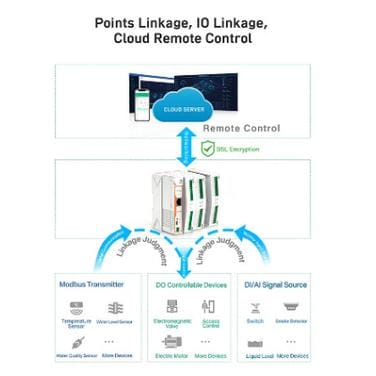

Linkage control: Supported. Data collection points, DI, and AI can be used as trigger and executed by DO
IOT PLATFORMS: Alibaba cloud, AWS IOT ,PUSR cloud, Microsoft Azure, ThingsBoard
User Configuring: Windows Utility, web console(HTTP)

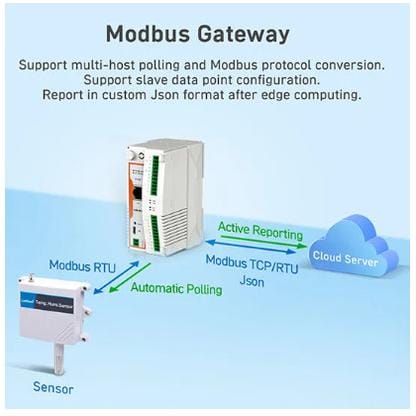

MODBUS RTU master
Supported functions: 01, 02, 03, 04
Supported data formats:8 bit: INT, UINT; 16 bit: INT, UINT (MSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB);64bit:float
Supported data points: 128
APPROVALS Regulatory: CCC,CE/RED, RoHS
Packet Contains :
1 Unit USR-M100 ETH
1 Unit Power Adaptor
1 Unit LAN Cable
Warranty : 6 months
User Manual + Datasheet:
https://icedrive.net/s/ffxXG2Gj7YjNkX3jGjik3vDWhX1f
Part Number : USR-M100-ETH
